Industrial Ethernet: Actelis

The Actelis QuFast family is also used in the industrial Ethernet segment. The top hat rail devices are easy to identify because a D comes after the device number. The QuFast products come as managed Ethernet L2 switches with an extensive set of features, optical ports and SHDSL interfaces in some models. What’s more, there are also versions with an integrated V.24 COM port server and PoE+ from two Ethernet ports and/or MACsec encryption. Just like all other Actelis devices, configuration is carried out via MetaASSIST View graphical node management software and can also be integrated into the MetaASSIS EMS or another SNMP management system.
Actelis QuFast traffic engineering application
Features:
  • Robust top hat rail design, passive cooling
  • Version with and without SHDSL transmission
  • SHDSL with repeater solution available
  • ERPS function for rings of up to 50 stations
  • 24/48 VDC
  • Alarm contacts
  • Numerous QoS and security features (e.g. MACsec-encryption)
  • Low power consumption
  • Easy configuration and monitoring via a node manager with a graphical user interface
  • Extended temperature range (-40°C to 74°C)

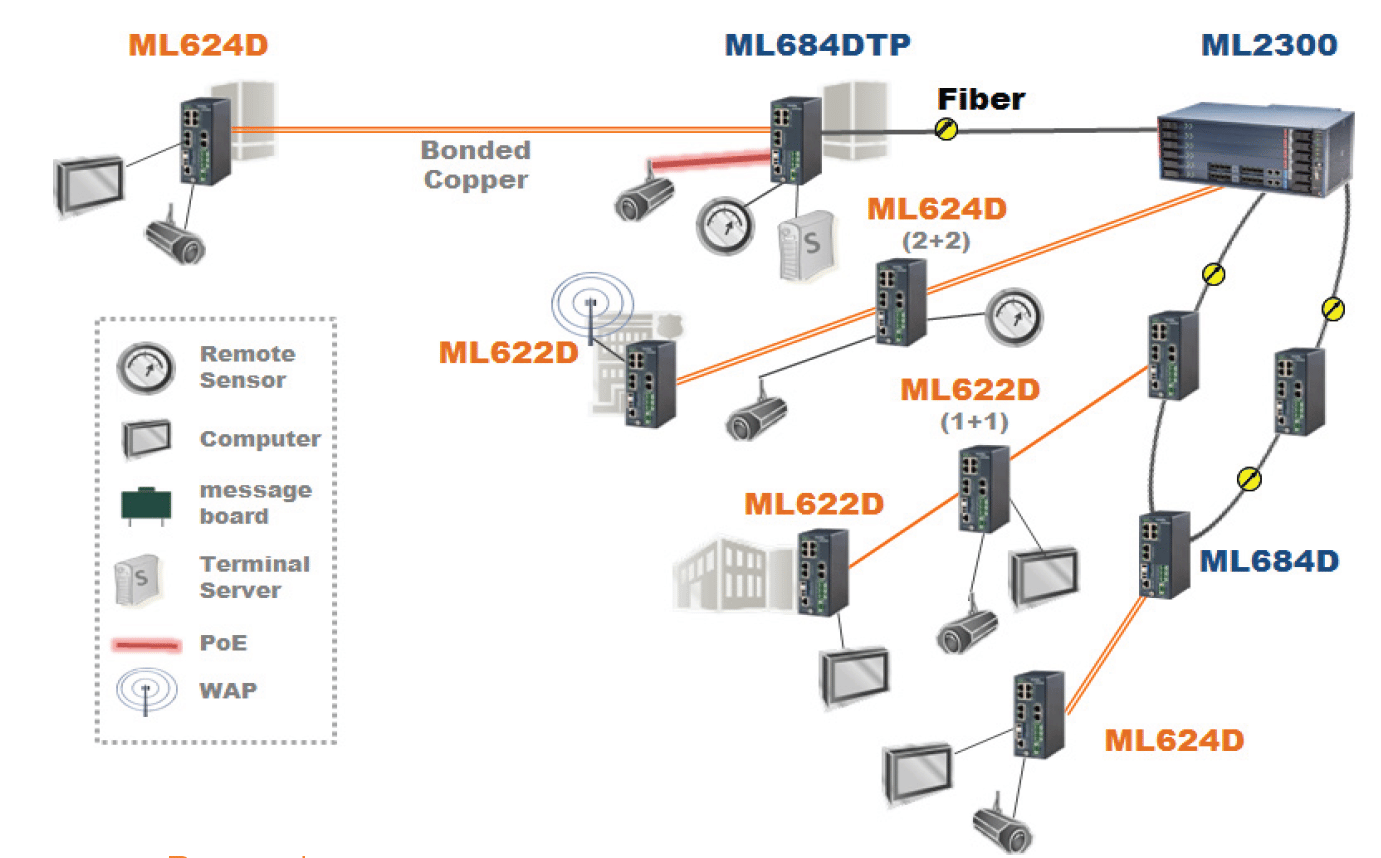

Actelis QuFast object monitoring application
